Annotate subtasks

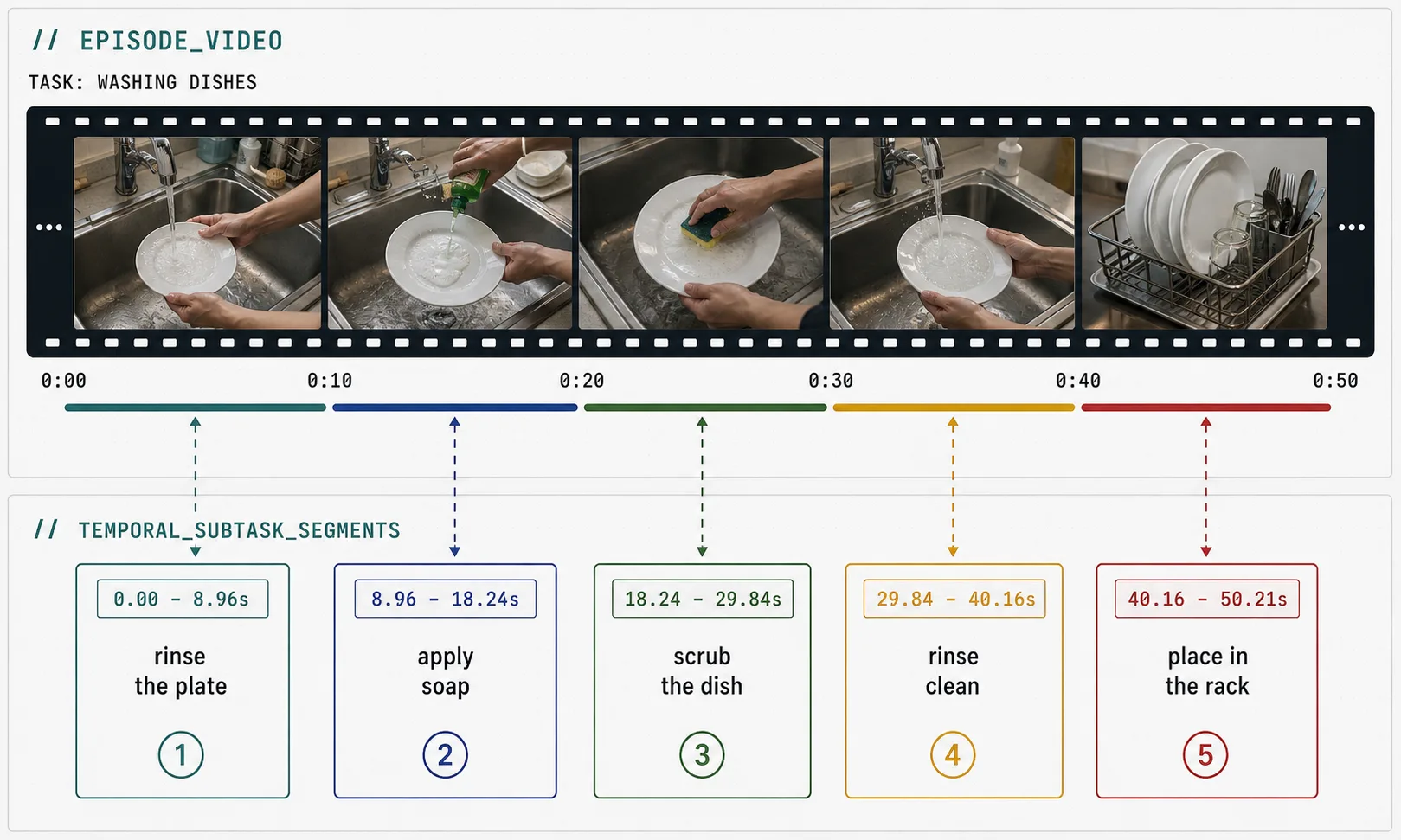

Add VLM-generated temporal subtask annotations to episodes

This example reads a LeRobot dataset, runs temporal subtask segmentation on each episode video, optionally relabels the predicted subtasks to improve accuracy, and saves the result back in LeRobot format.

import refiner as mdr

INPUT_DATASET = "hf://datasets/lerobot/berkeley_cable_routing"
OUTPUT_ROOT = "hf://buckets/macrodata/test_bucket"
VIDEO_KEY = "observation.images.top_image"


pipeline = (
    mdr.read_lerobot(INPUT_DATASET)
    .map_async(
        mdr.robotics.subtask_annotation(
            video_key=VIDEO_KEY,
            output_column="predicted_subtasks",
        ),
    )
    .map_async(
        mdr.robotics.subtask_labeling(
            video_key=VIDEO_KEY,
            segments_column="predicted_subtasks",
            output_column="labeled_subtasks",
        ),
    )
    .write_lerobot(f"{OUTPUT_ROOT}/berkeley-cable-routing-subtasks")
)

pipeline.launch_local(
    name="berkeley-subtask-annotation",
    num_workers=1,
)

Export HF_TOKEN and GOOGLE_GENERATIVE_AI_API_KEY before launching the pipeline. Local workers inherit both values from your environment.

Use Subtask Annotation for parameter details and in-depth explanation. Both subtask_annotation and subtask_labeling use Gemini 3.5 Flash through GoogleEndpointProvider, so you need to provide GOOGLE_GENERATIVE_AI_API_KEY.

For the benchmark context behind this workflow, see Annotating Robot Video Subtasks.

This is an open-source reference workflow. To have Macrodata evaluate subtask annotations on representative episodes from your dataset, send us a sample.
